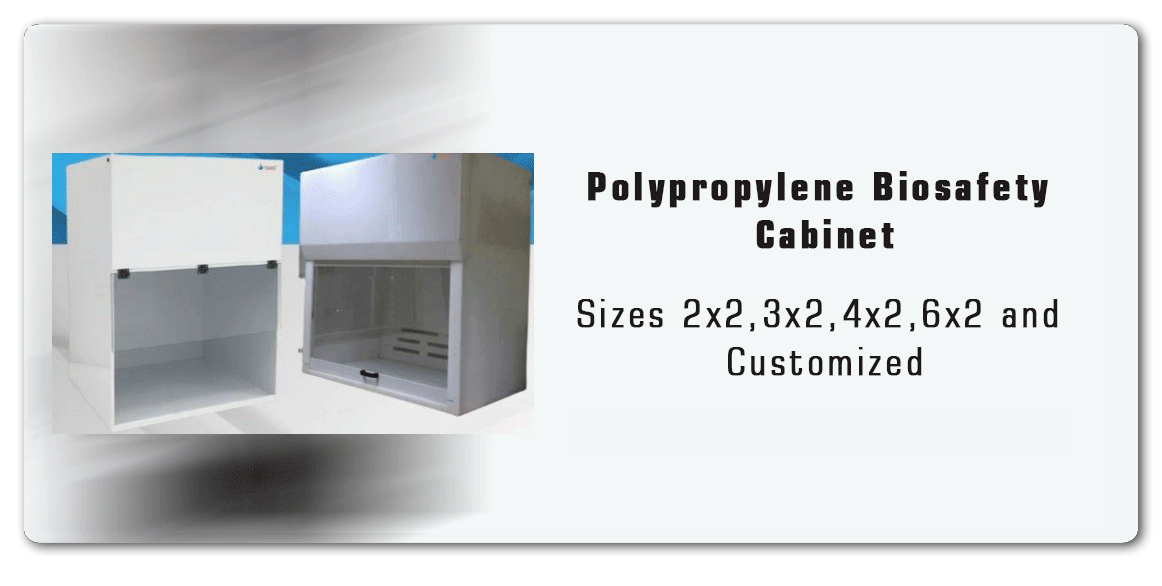

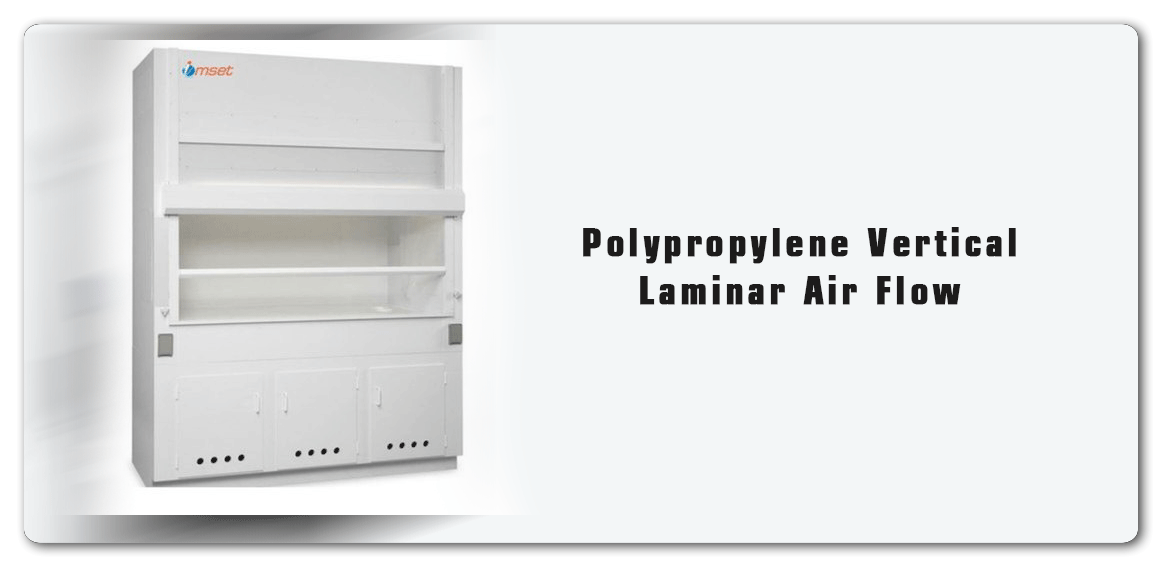

Polypropylene Biosafety Cabinet / Laminar Air Flow :- Sizes 2x2,3x2,4x2,6x2 and Customized

Technical Specification

Main body

Constructed in Polypropylene material

UV Light programming

Available with timer

Working Noise level

Low/ should be < 65 dB

Polypropylene Biosafety Cabinet Manufacture by Imset Shape
Electrical Safety

Electrical components used are standard for better electrical safety for the operator.

Front Control Panel

Provided to avoid exposure of UV Light & Lamp outside, making eyes more comfortable.

Filter Type

HEPA filter with integral metal guards & frame gaskets. Supply of HEPA filter 99.997% at 0.3 micron

Polypropylene Biosafety Cabinet Manufacture by Imset shape
Ergonomic Tilt

Exceptionally comfortable 10 deg ergonomic design improves comfort, prevents user fatigue & promotes safe working techniques.

Drainage Port

Provide beneath work surface to facilitate easy & better cleaning of the interior & handling of spillage inside the chamber.

Primary Filter

Specially designed pre filter to increase the life of HEPA filter

Ultra violet tube light

Germicidal i.e. 254 nm

Air Volume

Up to 500 CFM

Air Velocity

100 ft/min ± 10

Sleep Mode Operation

Automatically blower speed reduced up to 30%,this will help to save energy as well as help to maintain sterile work area during Biosafety Cabinet is not in operation

Arm Rest Bar

To avoid contamination from outside to inside contamination & for easy working with comfort.Secure & comfortable armrests enhance your comfort during extended work sessions

Intelligence Alarm System

Safety purpose Audio & Visual alarm for air fluctuation and for life of the HEPA filter and UV light

Electrical Socket

Internal socket inside the chamber,5/15 Amp

Electronic / Electrical panel

From clean chamber to give better contamination free results.

Power supply

- 230 V ± 15%, 50 Hz ± 3%

Polypropylene Biosafety Cabinet Manufacture by Imset shape
Polypropylene Biosafety Cabinet Manufacture by Imset shape
Illumination of work surface

Fluorescent tube light (intensity > 600 lux) provides excellent illumination for work surface & reduces operator fatigue. Flourescent tube light in set behind front control panel.

Front Sash Door

  • Manual sliding sash door made up of Imported poly carbonate sheet or toughened glass with sloping front for better access of samples
  • Front sash door height can be easily adjusted as per required by end-user.
  • The transparent sash door maximizes light & visibility inside the cabinet, providing a bright & open working environment.
  • The closing/opening of front door is integrated with the UV ON/OFF.
  • The UV will automatically switch “OFF” when the sash door is opened & switch “ON” when door is closed to avoid accidental exposure of UV light to the operator.

LCD Screen Display

  • For Operating Fluorescent, Uv Light & Blower With Audio and Visual alarm for HEPA filters blockage and life of the HEPA filter.
  • And also for Static Pressure Measurement of HEPA Filter.
  • Conveniently located display on outside of the Laminar Air Flow for easy use & also easy to reach from a seated working position.

Blower-Motor Assembly

  • Dynamically & statistically balanced aluminum centrifugal impeller driven by single phase, 2800 RPM motor
  • Double inlet blower fitted in such a way to reduces vibration & noise.
  • Blower is positioned in such a way that, to create an even filter loading, it helps to prolong the life of HEPA filters.
  • Provide uniform airflow by adjusting working voltage of fan.

Our Achivments

Performance Certificates

• Product must be ISO 9001 : 2015 Certified
• CE Marked : CE marked product
• GMP Certified

Applicable Standards

• EN ISO 14971:2012
• EN ISO 13485 : 2012
• EN 980:2008
• EN 1041 : 2008
• EN 61010-1:2010
• EN 61326-1:2013
• EN 12469:2000

Certificates

IQ, OQ & PQ Certificates will give Calibration & Traceability certificate provided with NABL accredited. Factory tested DOP test certificate provided.
