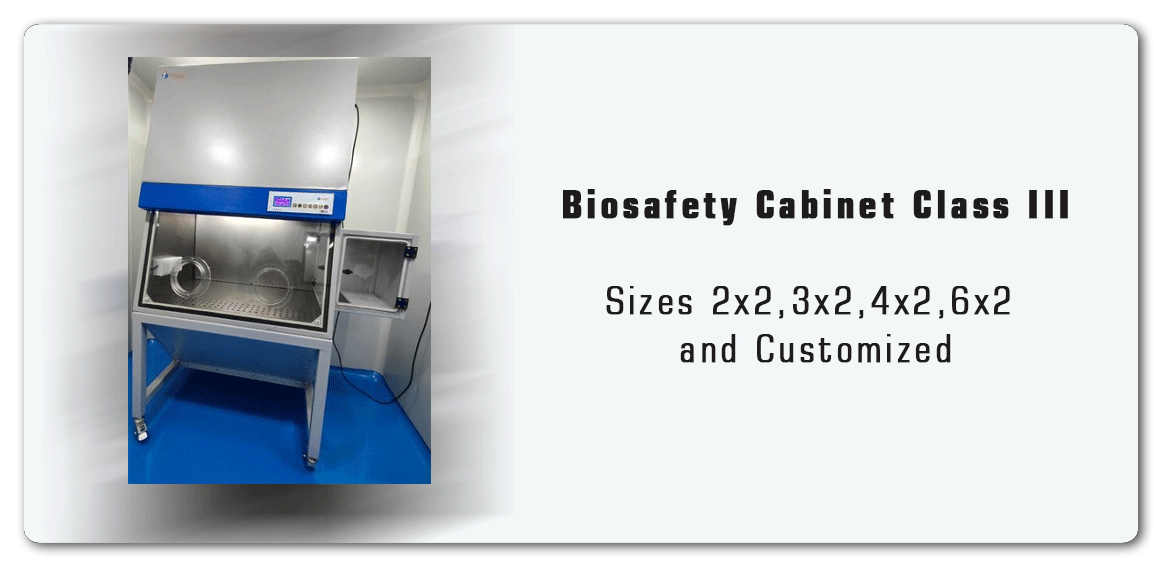

Class III Biohazard Safety

Class III Biohazard Safety cabinet should provide personnel, product & environment protection.

Class III Cabinets differ in proportion as 100% air is exhausted from the cabinet through high efficiency particulate air (HEPA) filtration.

Velocity of airflow to the work zone creates an class 100 environment for product protection, where the remaining exhaust air is discharged out through (HEPA).

Completely close from front with glove port access along with passbox chamber.

Technical Specification

• Cabinet Provides the Product, Person and Environmental protection
• Class III Biohazard Safety cabinet should provide personnel, product & environment protection.
• Class III BSC Cabinets 100% air exhaust through HEPA filter.
• Velocity of airflow to the work zone creates a class 100 environment for product protection, where the remaining exhaust air is discharged out through (HEPA).
• Air barrier at the work opening & the contaminated air plenum under positive pressure. An air barrier between the operator & the work zone maintained by a flow of room air through a full width grille in the work opening.
• The barrier air mixes with the laminar flow air in a sump underneath the work surface & is exhausted to the outside environment through a HEPA filter.
• The barrier air mixes with the laminar flow air in a sump underneath the work surface & is exhausted to the outside environment through a HEPA filter.

Front Sash Door

• Made up of Imported Polycarbonate Sheet or Toughened Glass viz. UV absorbent
• With two glove port. Large opening acrylic visor, and complete with bonded sleeve ports.
• Polypropylene sleeves, universal cuff-rings and all associated
• O-rings for the Environment ‘safer aseptic glove change’

LCD Display with Differential pressure sensors

• Digital Microprocessor Control System for Operating Fluorescent, Uv Light & Blower
• Continuously display true value of differential pressure of HEPA filter for inflow as well as down flow velocity.
• Conveniently located display on outside of the Biosafety Cabinet for easy use & also easy to reach from a seated working position

Blower-Motor Assembly

• Dynamically & statistically balanced aluminum centrifugal impeller driven by single phase, 2800 RPM motor
• Double inlet blower fitted in such a way to reduces vibration & noise.
• Blower is positioned in such a way that, to create an even filter loading, it helps to prolong the life of HEPA filters.
• Provide uniform airflow by adjusting working voltage of fan
